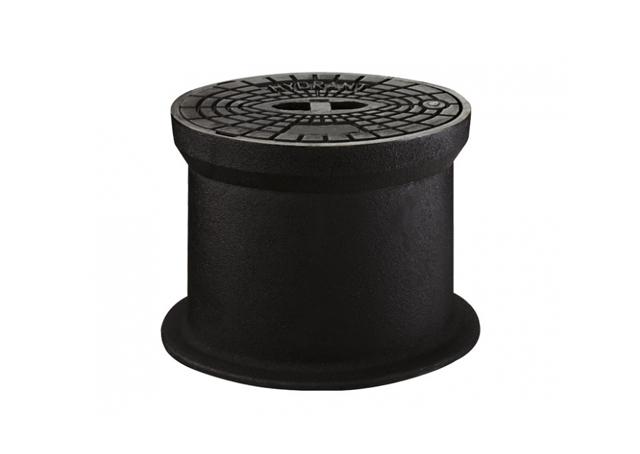

Cast Iron Hydrant VALVE BOX D400 / Dn100

Litinový hydrantový poklop D400 DN100
PARAMETERVALUE
StandardEN124-2 : 2015
EN 124 ClassD 400
Maximum load40 tons
Materialgray cast iron EN-GJL-250
Surface coatingbitumen coating
HydrantDn 100
Height310 mm
Total weight35 kg
Available coloursblack
  • A cast iron hydrant valve box DN 100, class D400, is designed to cover and protect underground fire hydrants in areas with heavy loads, such as busy urban roads, industrial zones, logistics centres, or parking lots for heavy vehicles.
  • Thanks to its robust construction made of gray cast iron EN-GJL-250 and a surface coating of bituminous varnish, the manhole cover is highly resistant to mechanical damage, corrosion, and weather conditions. It guarantees safe operation under loads of up to 40 tons.
  • The height of 310 mm allows flexible installation into various types of underground chambers and ensures stable and safe access to the hydrant.
  • The valve box protects the hydrant from unauthorised access and is easily identifiable in the field for quick interventions in case of fire.

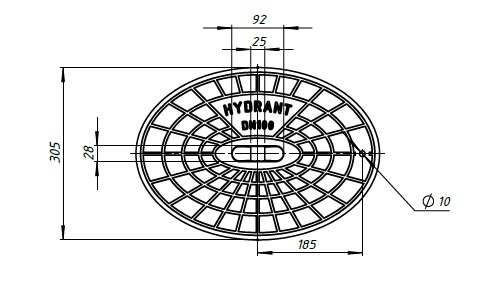

Výkres víka poklopa hydrantového. Vnější pohled
Drawing of the D400 Dn100 hydrant valve box lid. External view
Výkres víka poklopa hydrantového. Vnější pohled

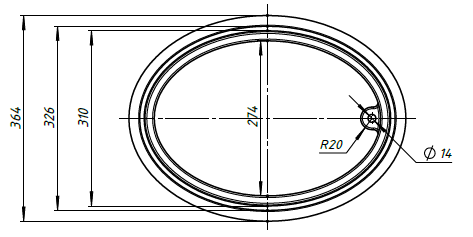

Drawing of the D400 Dn100 hydrant valve box lid. Section view
Výkres víka poklopa hydrantového. Řez
Drawing of the D400 Dn100 hydrant valve box lid. Section view
Výkres rámu poklopa hydrantového. Vnější pohled
Drawing of the D400 Dn100 hydrant valve box frame. External view

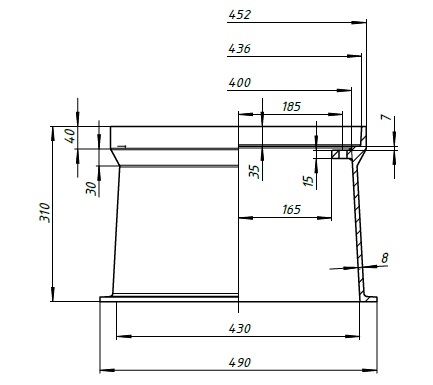

Výkres rámu poklopa hydrantového. Průrez
Drawing of the D400 Dn100 hydrant valve box frame. Section view
Výkres rámu poklopa hydrantového. Průrez
Drawing of the D400 Dn100 hydrant valve box frame. Croos-section view
  • Check the stability and evenness of the substrate. The substrate must be load-bearing, compacted, and prepared according to the project documentation requirements.
    .
  • The valve box frame is placed into a bedding of concrete mix with a minimum grade of C25/30. It is essential to ensure the correct height and levelness of the frame according to the final surface of the roadway.
  • If necessary, use height-adjustable elements or a concrete extension to ensure the lid is flush with the surface (e.g., asphalt, paving).
  • If needed, use height-adjustable components or a concrete riser to make sure the lid is level with the surface (e.g., asphalt, paving).
  • After the concrete has cured, place the lid into the frame. Check its free movement and proper seating.
  • Verify proper seating, closing functionality, and overall stability. The manhole cover must be securely installed and must not wobble.
Poklopy litinové vše

The technical data sheet for the valve box can be downloaded here
